Paralell Style air gripper can work without lubrication

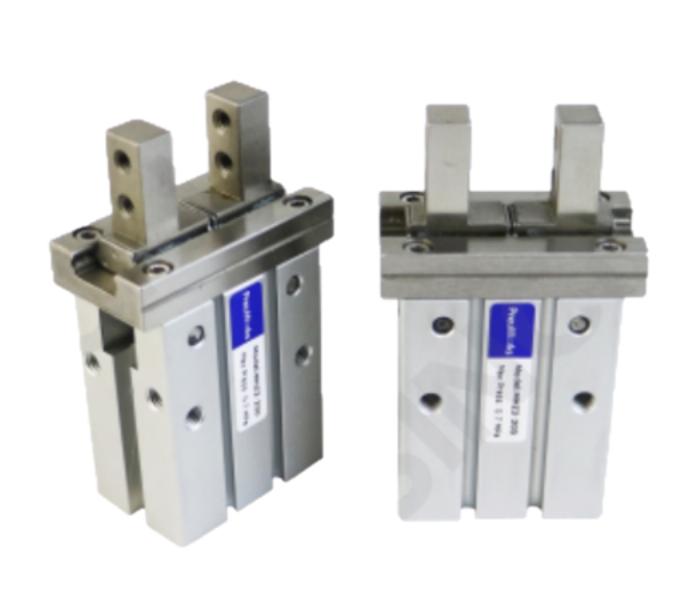

Parallel Style air gripper D16 double acting, gripping range 14,9-20,9mm

Art. No.: D16PARAIRGRI On Sale (Best Seller)
107,97€ Excl. VAT
1 × 107,97€/pcs.
107,97€ incl. 0% VAT
Special local overstock price applied Local overstock price for 0 of 0 pcs. - rest at regular price
Save 10% by joining the Efficiency Club
Pack size
Quantity (number of packs)
= 1 pcs. total
Delivered by xx–xx.yy. Not enough stock available right now
🇩🇪 Ships locally
Products description
Pneumatic connection: M5x0.8
Distance between the two gripper fingers:
- Open: 14.9mm
- Closed: 20.9mm
Ambient and liquid temperature: -10 to 60°C
Operating medium: compressed air, filtered using a 40μm filter element (ISO 8573)
Repeatability: /- 0.1 mm
Max. operating frequency: 180 cpm
Operating pressure: 0.1 to 0.7 MPa
Lubrication: Not required
How it works: double-acting

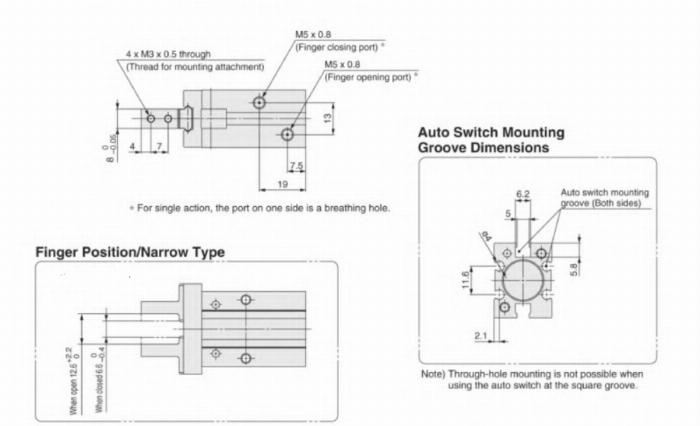

Clamp attachment: 2xM3/clamp
Housing mounting: 4xM4 (threaded hole suitable for screw M3)
Internal diameter of the piston 16 mm
